ECG Machine

• Application
• Hospital

• Color
• White

• Condition
• New

• Frequency
• 50-60 Hertz (HZ)

• Material
• ABS plastic

• Portable
• Yes

• Power Source
• Electric

• Voltage
• 100-240 Volt (v)

• Accuracy
• High precision signal acquisition suitable for medical use

• Battery Life
• N/A (Cable accessory; battery not applicable)

• Channels
• Other, 3 channels

• Color
• Grey with colored lead clips

• Condition
• New

• Dimension (L*W*H)
• Cable length approx. 1.3 meters

• Download Interface
• Standard connector for ECG machine

• Filters
• Motion, AC, and baseline filters in compatible machines

• Frequency
• Up to 150 Hz

• Gain
• Gain selectable via ECG machine

• Inter-Channel Interference
• <0.5% or negligible

• Internal Memory
• N/A (Cable does not store data)

• Lead Acquisition
• 3 channels

• Material
• Medical-grade TPU plastic

• Noise Level
• Low (< 20 V rms)

• Operating Mode
• Other, Automatic and manual recording

• Paper Type
• Compatible with standard ECG thermal paper

• Portable
• Yes

• Power Source
• Other, N/A (Passive cable)

• Real-Time Operation
• Yes

• Record Format
• Analog transmission for real-time recording

• Recording Mode
• Real-time and snapshot

• Recording Time
• Dependent on ECG machine

• Resolution
• 12 bit (duplicate, as standard)

• Sample Rate
• 500 samples/sec

• Screen
• Other, N/A (applies to ECG machine, not cable)

• Sensitivity
• 10 mm/mV

• Speed
• 25 mm/s, 50 mm/s

• Technology
• Other, Digital signal transmission

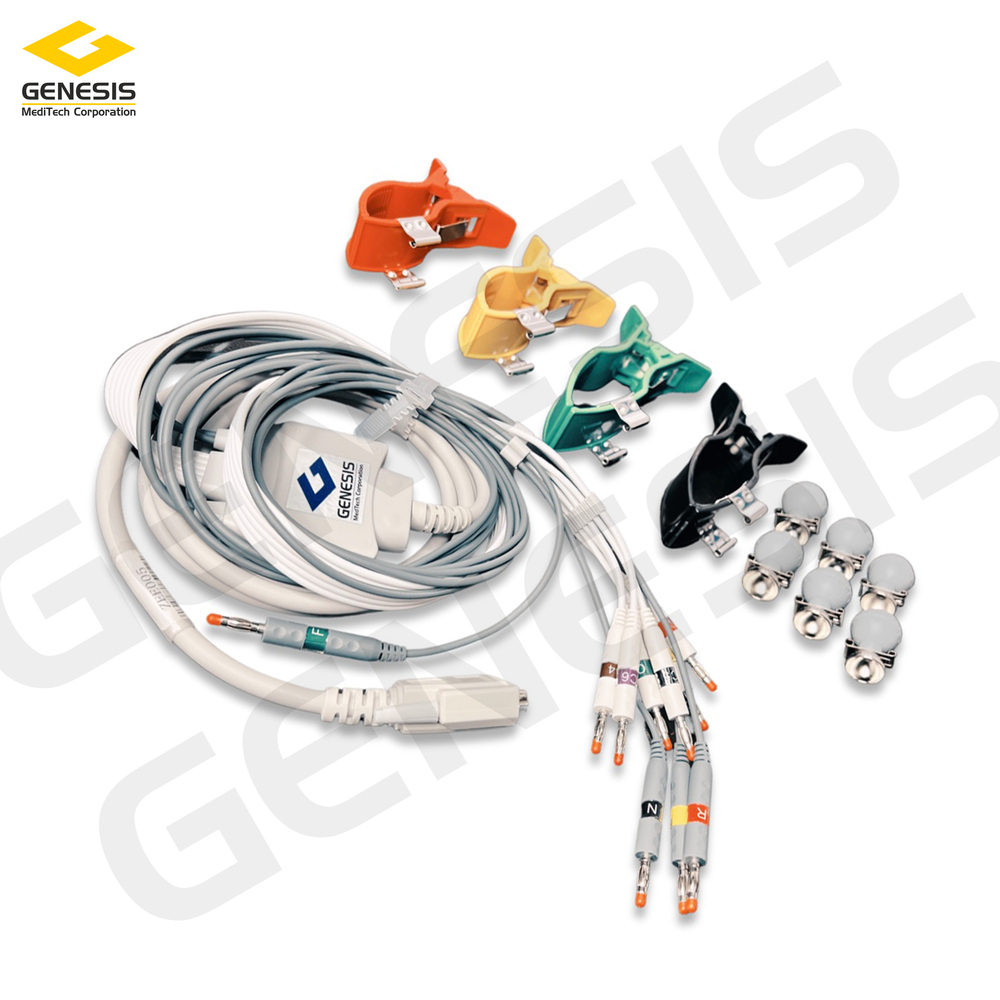

• Type
• Other, ECG patient cable

• Use
• To connect patient electrodes to a 3 channel ECG machine

• Voltage
• Signal voltage range suitable for ECG acquisition

• Weight
• Approx. 200 grams

• Accuracy
• High Precision Signal Transmission

• Battery Life
• Not Applicable (Cable Only)

• Channels
• Other, 12 Channels

• Color
• Grey with Multi-colored Lead Connectors

• Condition
• New

• Dimension (L*W*H)
• Approx. 150 cm Cable Length

• Download Interface
• Machine End: Standard ECG Connector, Patient End: Snap/Clip

• Filters
• Not Applicable (Refer to Machine)

• Frequency
• DC to 150 Hz

• Gain
• Stable Signal Transfer

• Inter-Channel Interference
• Minimal (Designed for Channel Isolation)

• Lead Acquisition
• 12 Lead

• Material
• Medical Grade TPU & Copper Core

• Noise Level
• Low Noise Shielded Cable

• Operating Mode
• Other, Standard/Diagnostic

• Paper Type
• Not Applicable (Cable Only)

• Portable
• Yes

• Real-Time Operation
• Other, Yes (Enables Real-Time ECG Monitoring)

• Resolution
• Supports Machine Native Resolution

• Sample Rate
• Compatible with Machine Sample Rate up to 1000 Hz

• Sensitivity
• High Sensitivity Transmission

• Speed
• Not Applicable (Cable Only)

• Technology
• Other, Shielded Cable Technology

• Type
• Other, 12 Channel ECG Patient Cable

• Use
• For Medical ECG Machine Patient Monitoring

• Weight
• Approx. 150-250 grams

• Accuracy
• 2% or better

• Battery Life
• Up to 6 hours continuous operation

• Channels
• Other, 12 Channels

• Color
• White/Grey

• Condition
• New

• Dimension (L*W*H)
• 310 x 260 x 70 mm

• Download Interface
• USB/RS-232/SD card

• Filters
• AC, DC, EMG, Baseline Drift

• Frequency
• 0.05 ~ 150 Hz

• Gain
• 5, 10, 20 mm/mV selectable

• Inter-Channel Interference
• < 0.2% peak-to-peak output

• Internal Memory
• Stores up to 200 ECGs

• Lead Acquisition
• Simultaneous 12-lead acquisition

• Material
• ABS Plastic housing

• Noise Level
• < 20 V (peak-to-peak)

• Operating Mode
• Other, Automatic, Manual, Arrhythmia

• Paper Type
• Thermal paper 210 mm width

• Portable
• Other, Yes, portable design with carrying handle

• Power Consumption
• < 30 W

• Power Source
• Other, Built-in rechargeable battery & AC

• Real-Time Operation
• Other, Yes, real-time display and printing

• Record Format
• PDF/DICOM/ECG XML

• Recording Mode
• Auto/Manual/Arrhythmia

• Recording Time
• Adjustable, up to 60 seconds

• Resolution
• 128 x 64 LCD Display

• Sample Rate
• 1000 Hz per channel

• Screen
• Other, High-contrast LCD (Touch or Keypad)

• Sensitivity
• 10 mm/mV

• Speed
• 25/50 mm/sec selectable

• Technology
• Other, Microprocessor-based

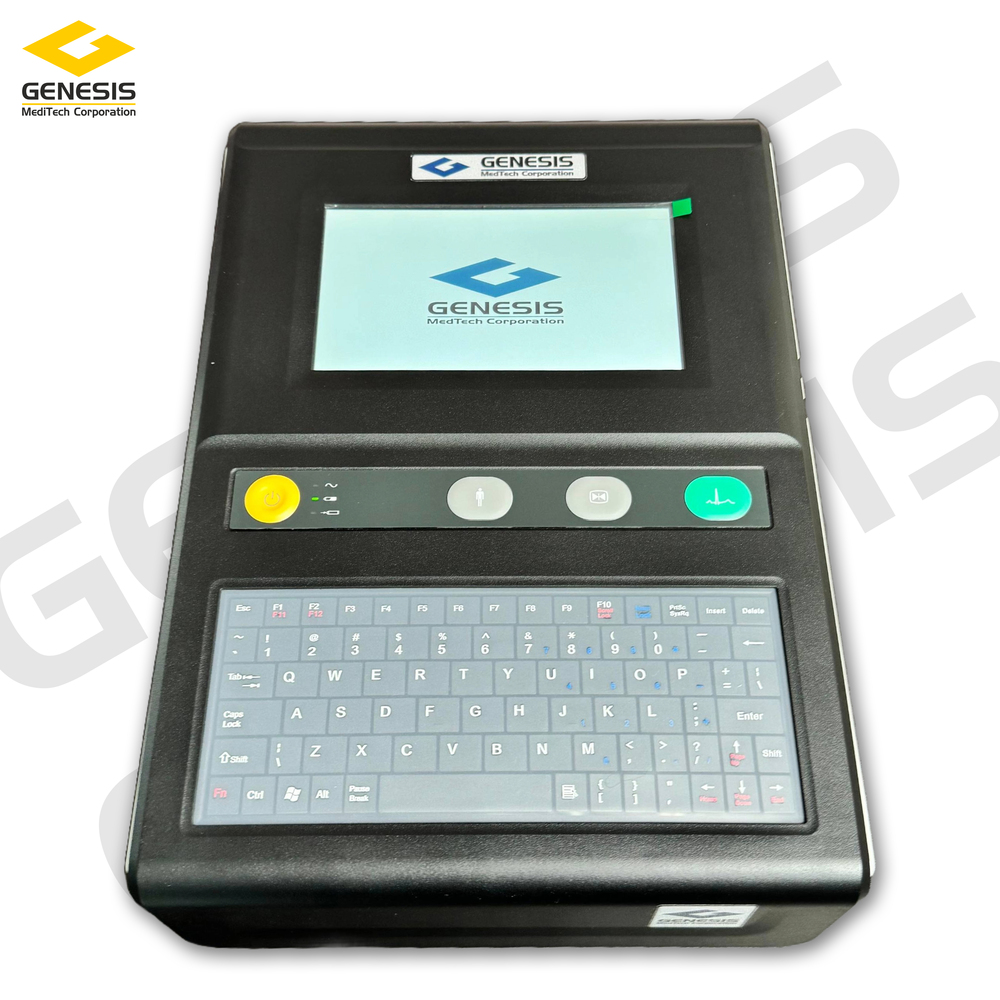

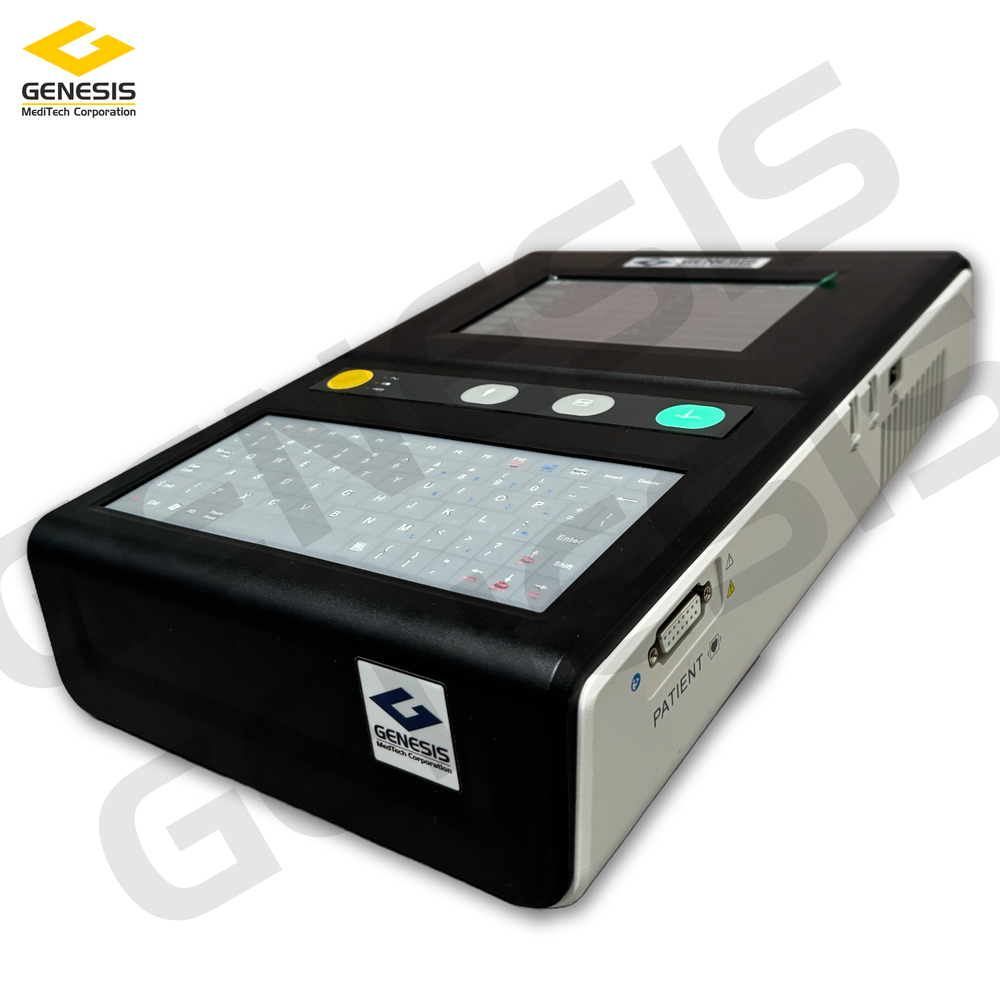

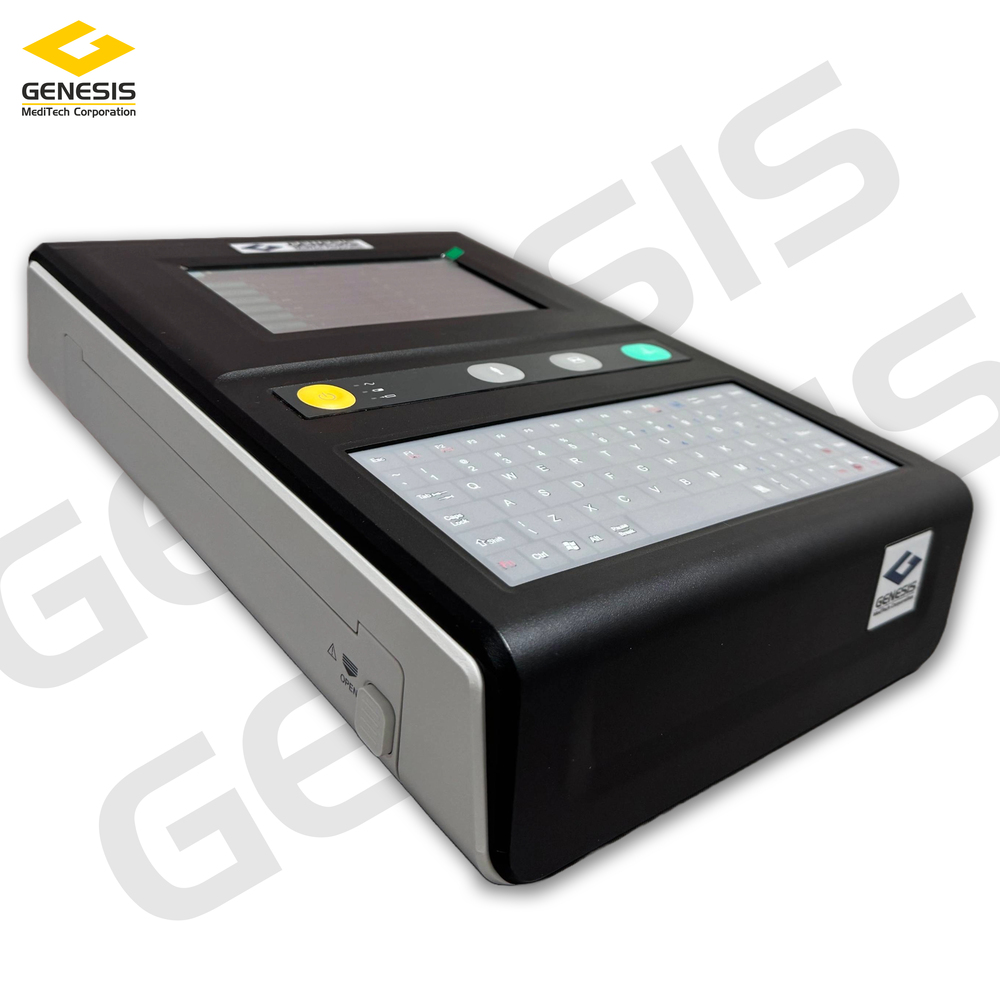

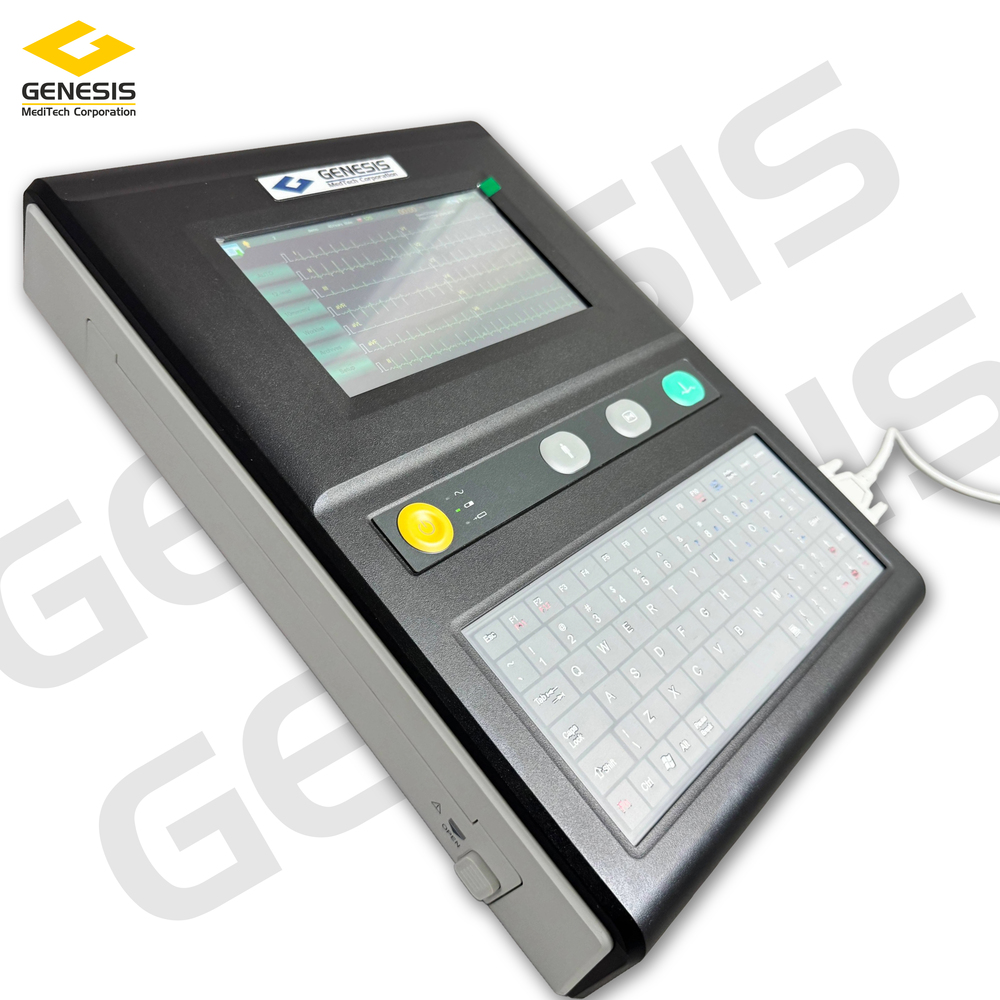

• Type
• Other, Digital Electrocardiograph

• Use
• Hospital, Clinic, Cardiac Center

• Voltage
• 100-240V AC, 50/60 Hz

• Weight
• 3.5 kg
